Description
Socket set screws are headless screws, also known as grub screws, typically supplied with a cup point. They are fully threaded and designed to be installed flush with or below the surface of the workpiece.
They have a hexagon recess for installation with an Allen key wrench. These screws are commonly used in applications where a nut is not required. Types include Cup point/cone point/dog point/flat point.
Types:
- (MM) DIN 913 (flat)

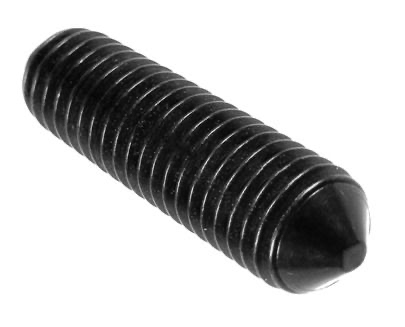

- DIN 914 (cone)
- DIN 915 (dog)

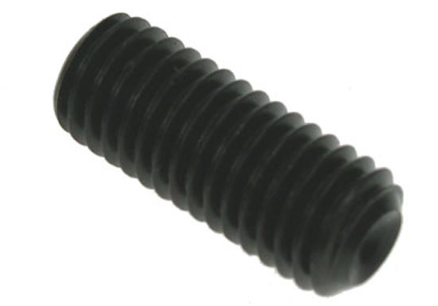

- DIN 916 (cup)
Materials:
- H/T grade 14.9
- Stainless steel A2/A4
Sizes:
- M1.6 – M20 (thread dia)
Finishes:
- Zinc
- Self Colour
| Types: | Materials: | Sizes: | Finishes: |
|---|---|---|---|
| (MM) DIN 913 (flat) | H/T grade 14.9 | M1.6 – M20 (thread dia) | Zinc |
| DIN 914 (cone) | Stainless steel A2/A4 | Self Colour | |
| DIN 915 (dog) | |||
| DIN 916 (cup) |
Data Sheets:
Socket Sets (Cup Point)
